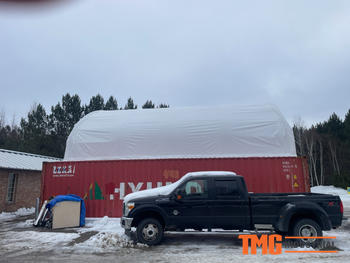

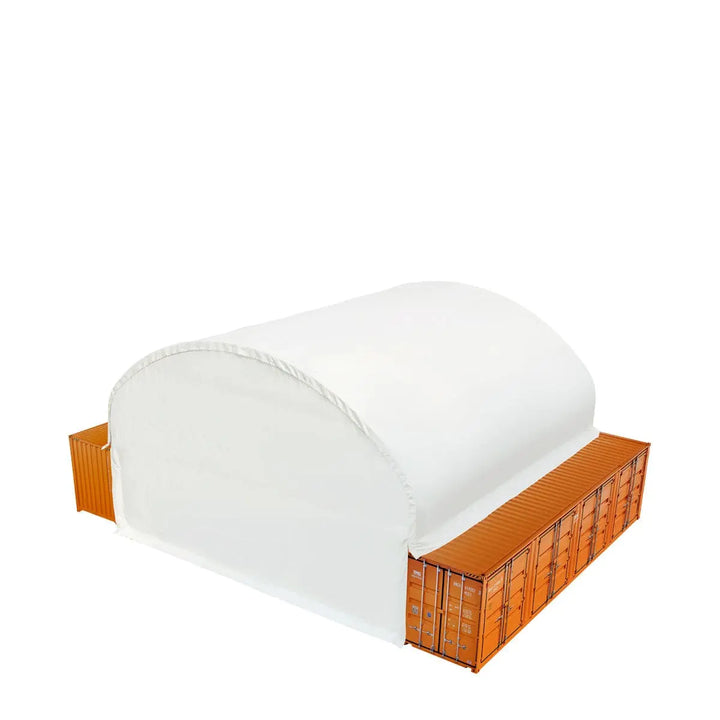

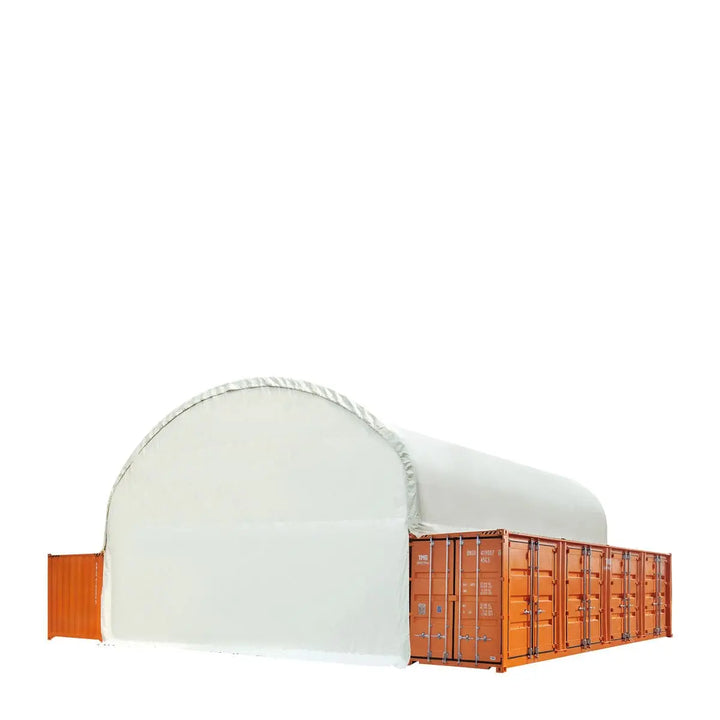

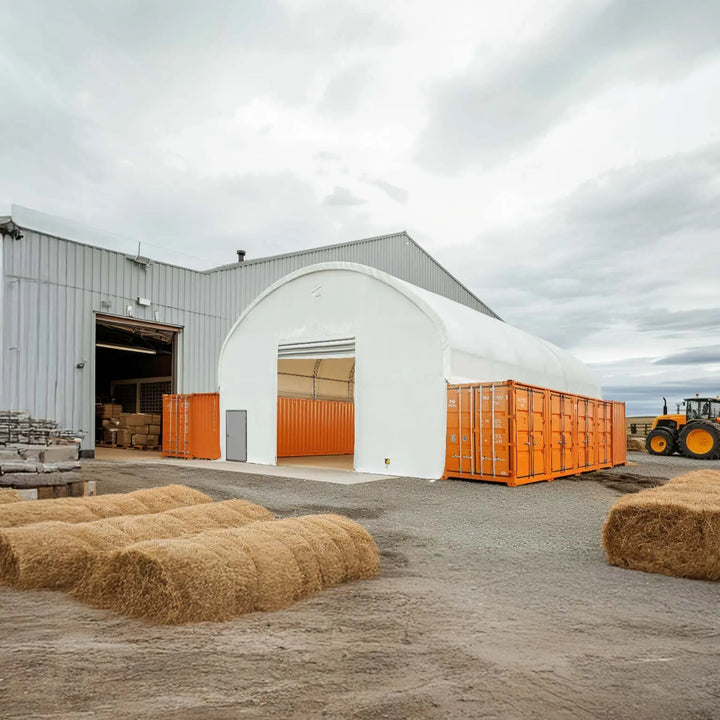

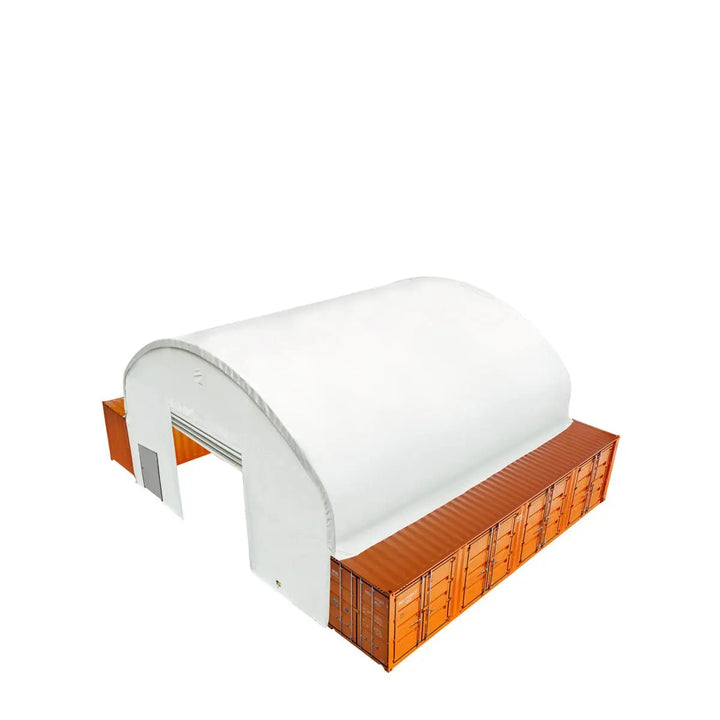

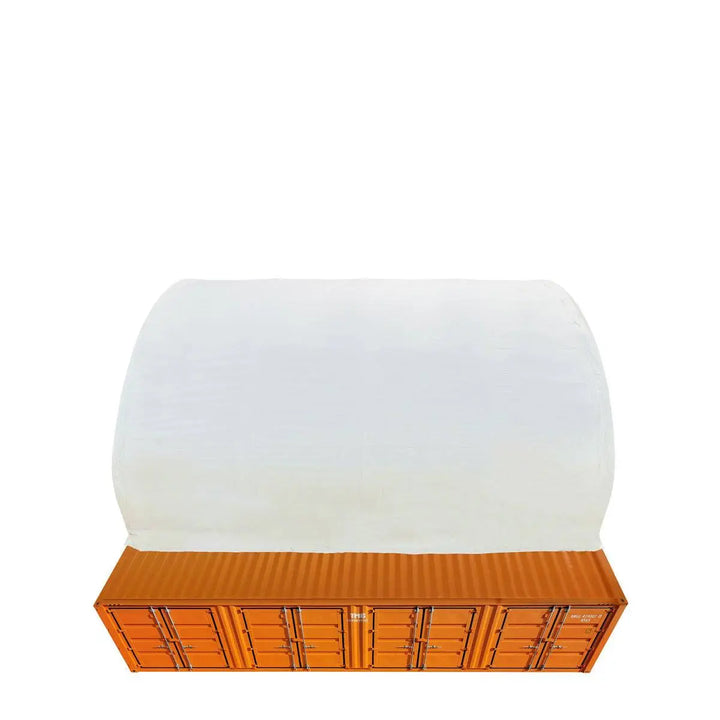

• Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

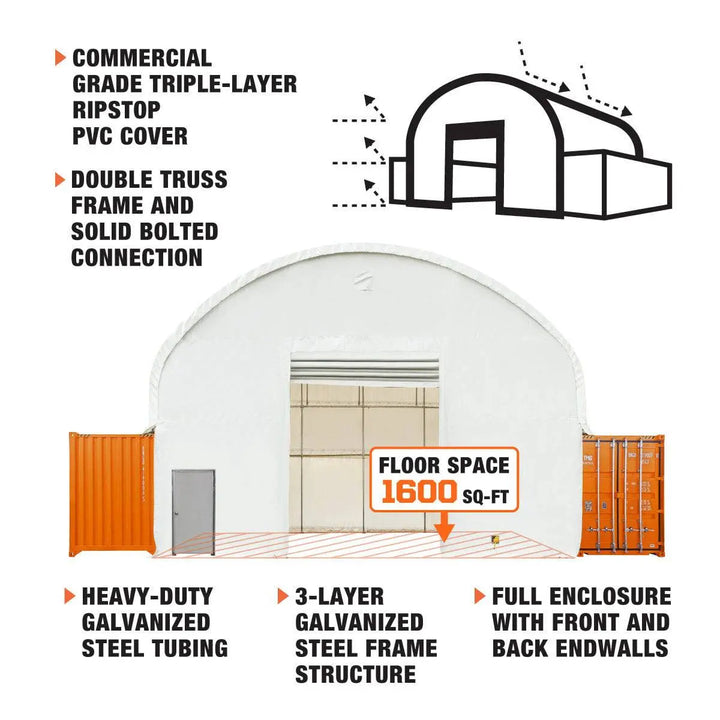

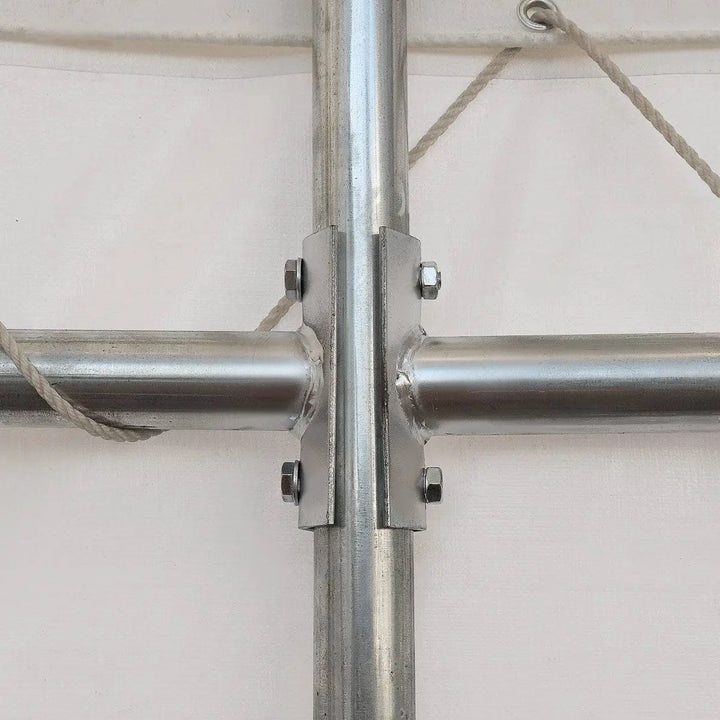

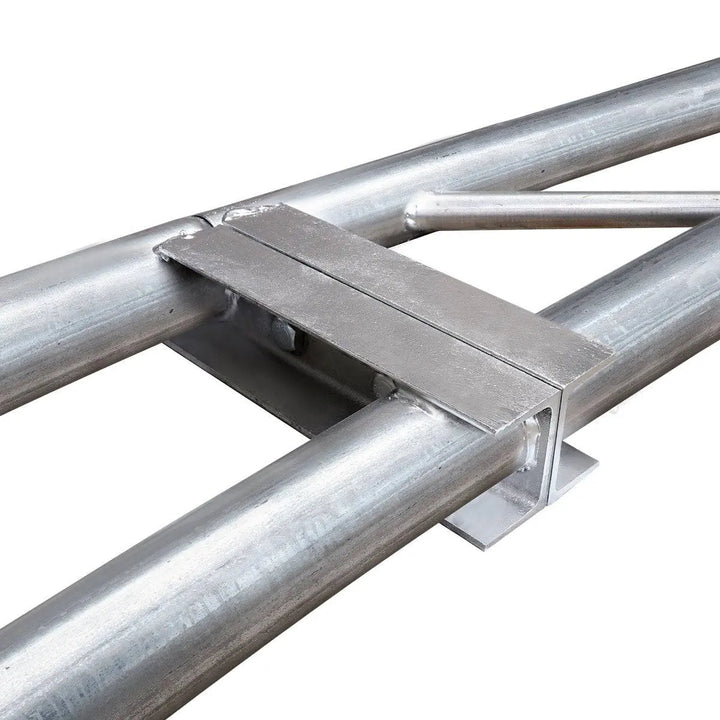

• Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
• Fully enclosed design provides year-round, all weather protection for your machinery, tools, materials and other sensitive cargo
• Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
• Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
  • Stands strong against tearing, leaking, and chemical corrosion
  • Natural flame retardant, resistant to chemicals and oil
  • UV protected and waterproof
  • Fabric color: White

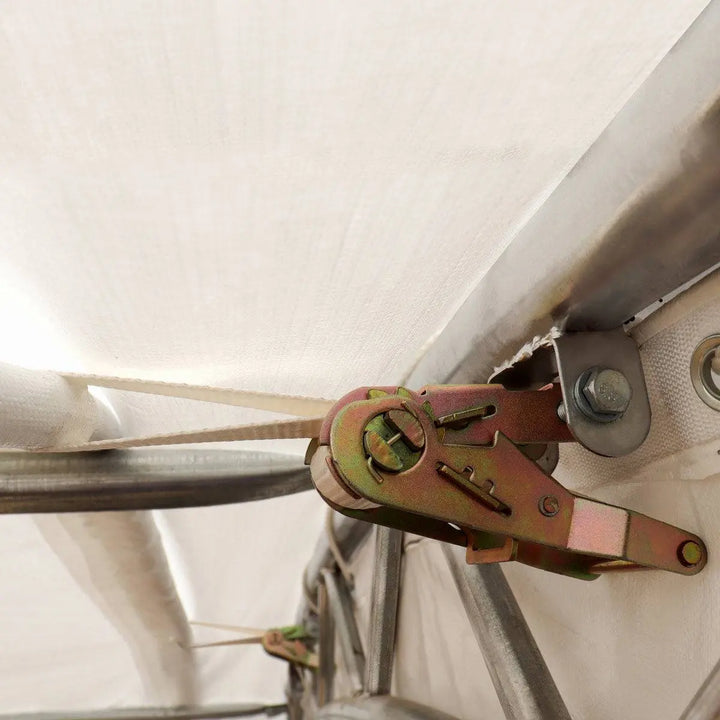

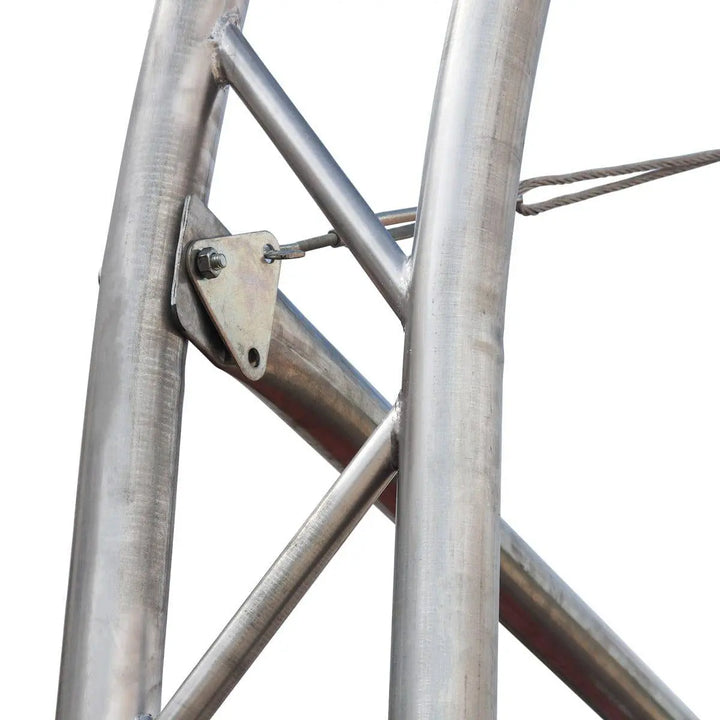

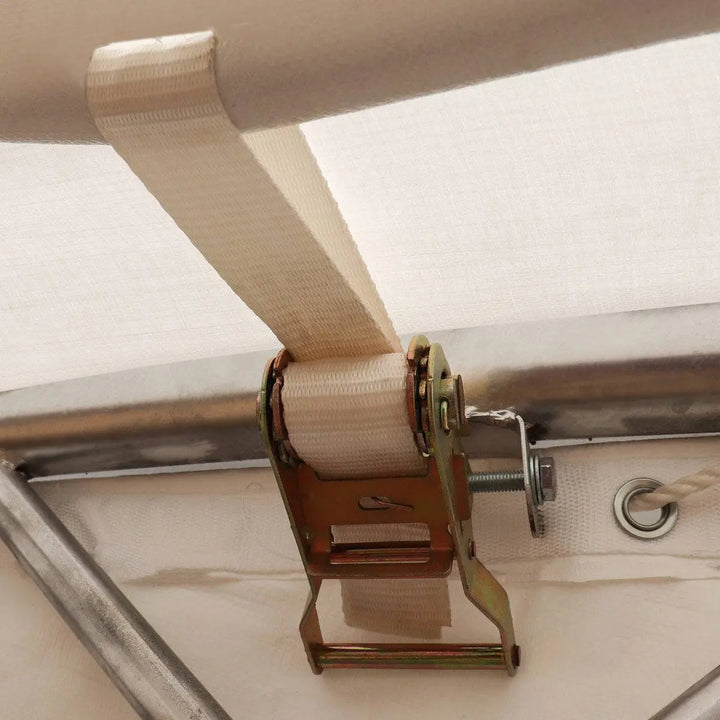

• Designed with 10’ truss spacing, steel tubing and a quad tension cable system for maximum stability and reliability on your worksite
• Wide open front wall winch roll up door allows for easy parking, machine operation and dynamic workflow to run throughout
• Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
• Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
• PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

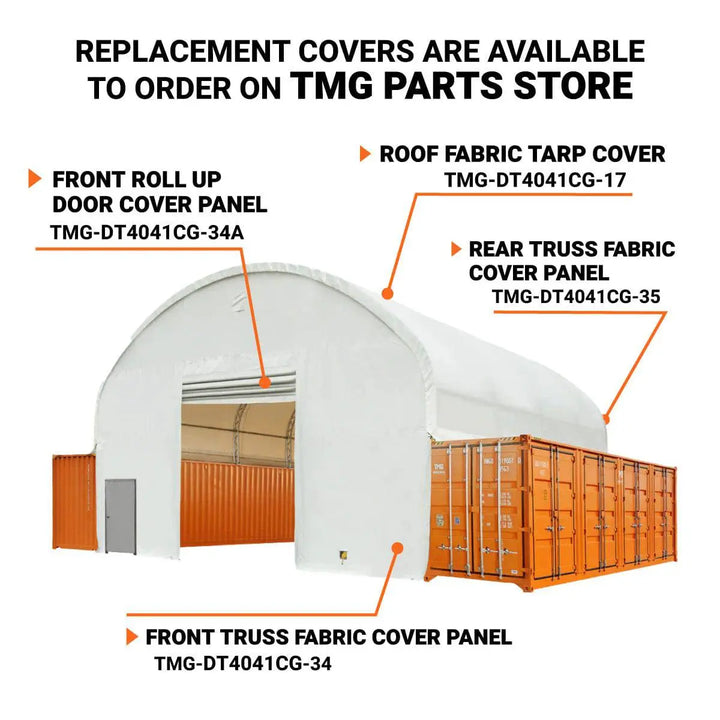

• Replacement covers available for order here TMG PARTS STORE
• Custom lengths available for 53’ containers or other dimensions upon request.

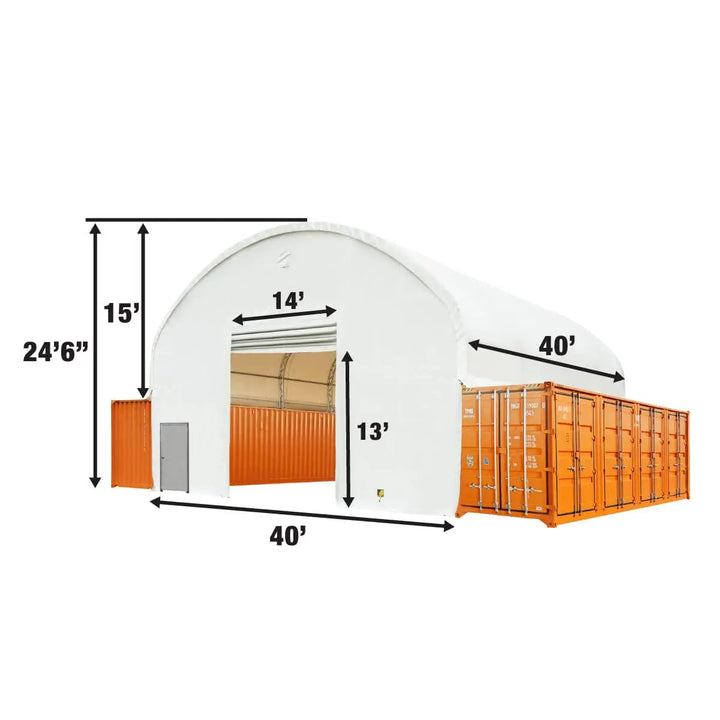

• Exact floor footprint: 39’5” (W) x 39’5” (L)
• Truss spacing: 10’
• Truss tubes: 2-½” – 15 GA (approx.)
• Purlin tubes: 2-½” – 15 GA (approx.)
• Peak ceiling height from the container top: 15'
• Peak ceiling height from the ground: 24' 6” (with 40’HC container height)
• Sidewall rise above container top: 3’6” (approx.)
• Front and back wall kit TMG-DT40CFB
  • Designed for 40’HC containers

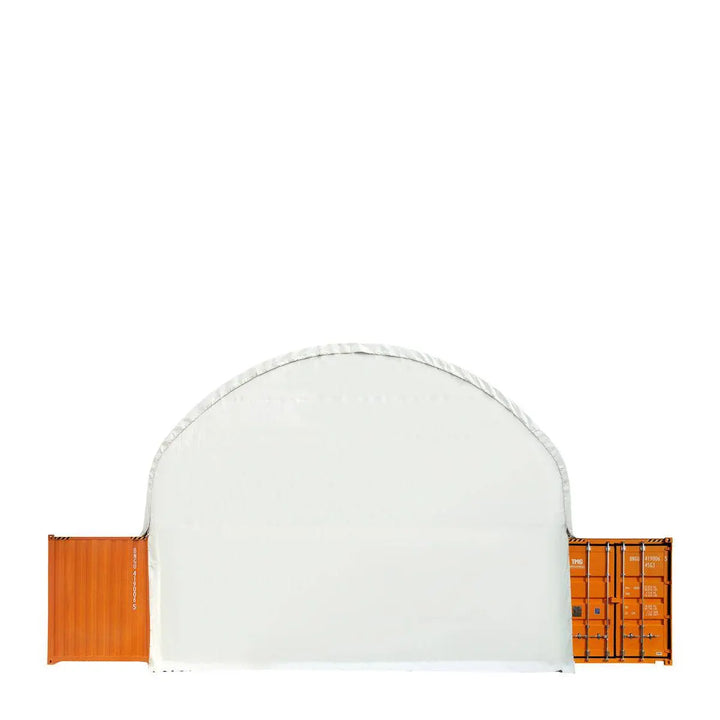

  • Complete frame built and covered back wall

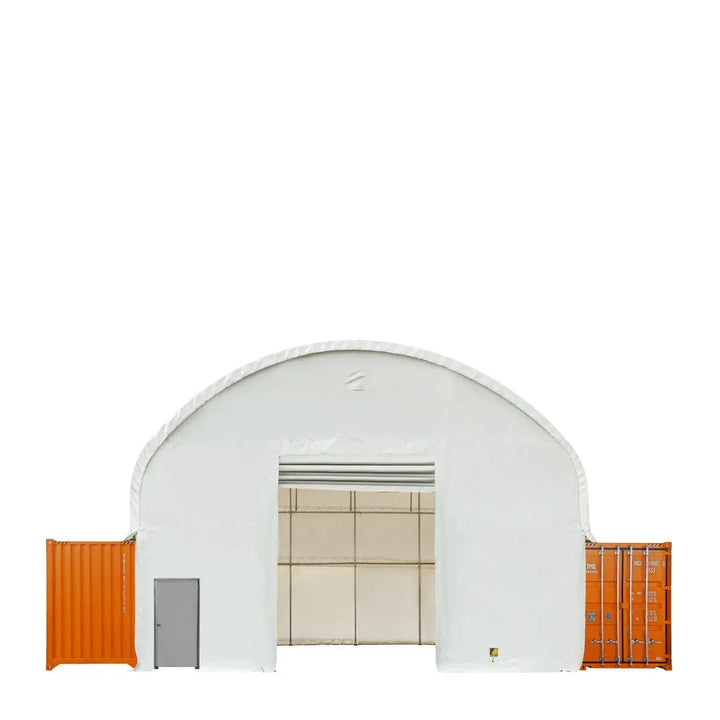

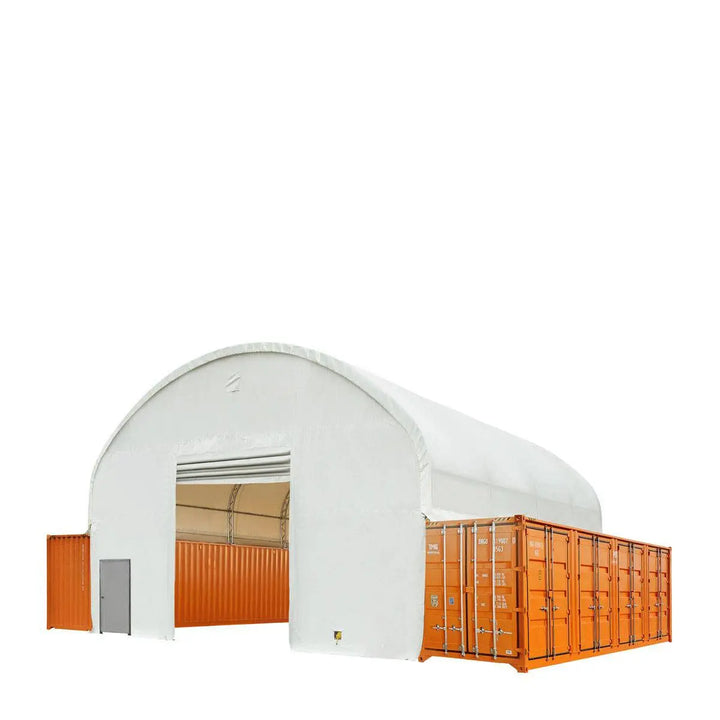

  • Complete frame built and covered front wall with man door and winch roll up door
• Man door: 3’ x 6’6” (W x H)
• Winch roll-up door with drive through clearance: 14’ x 13’ (W x H)
• Cover material: 21 oz PVC fabric (white color)

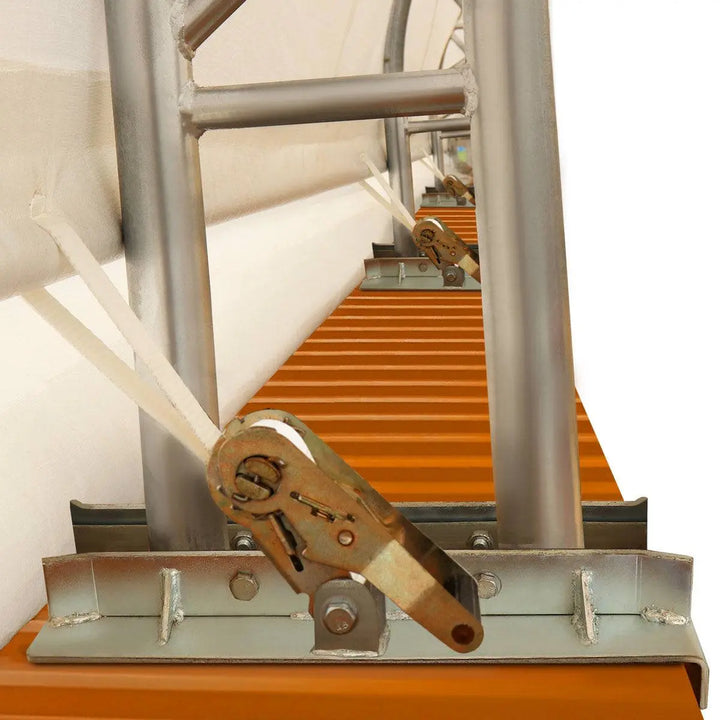

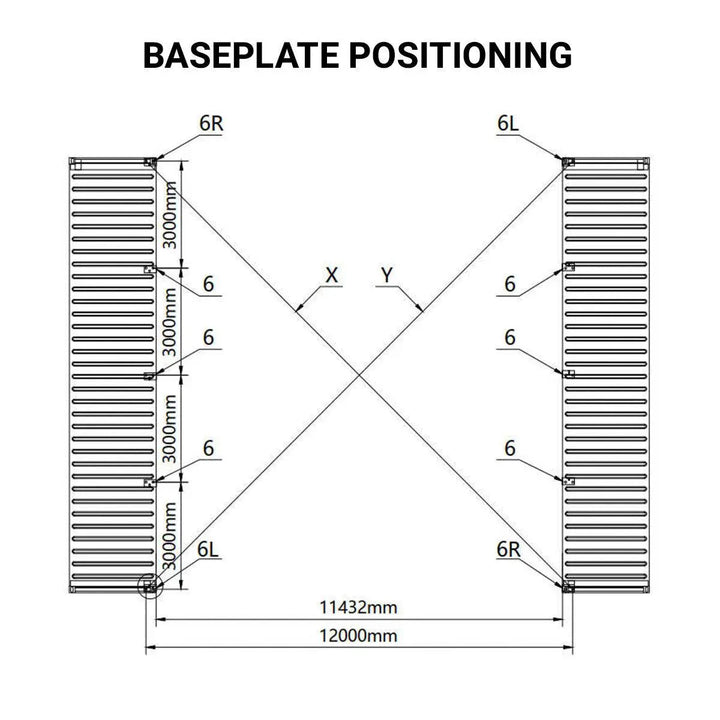

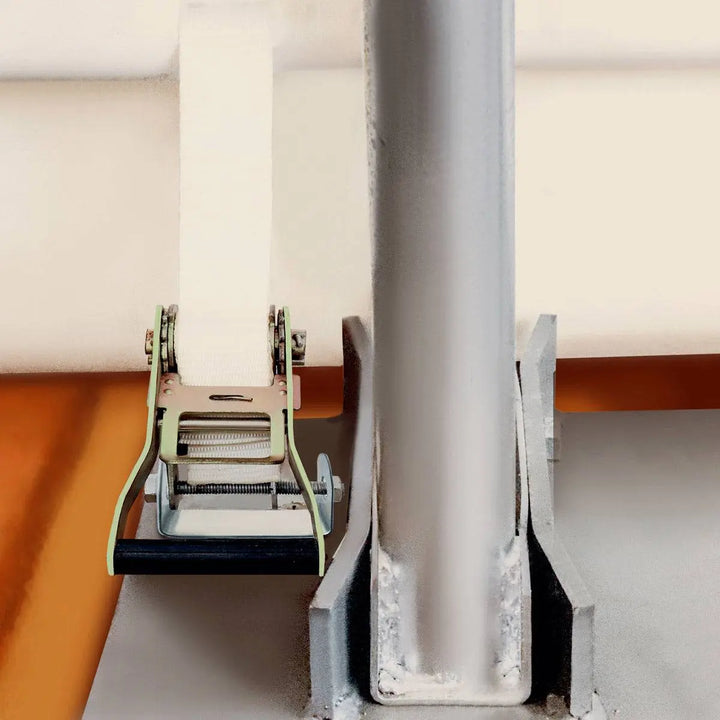

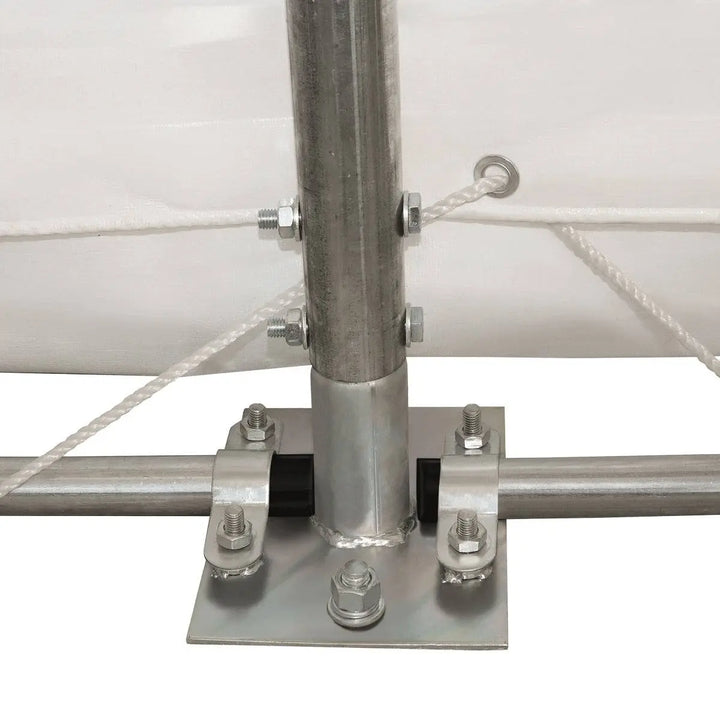

• Welding required for all footplates
• Containers not included

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

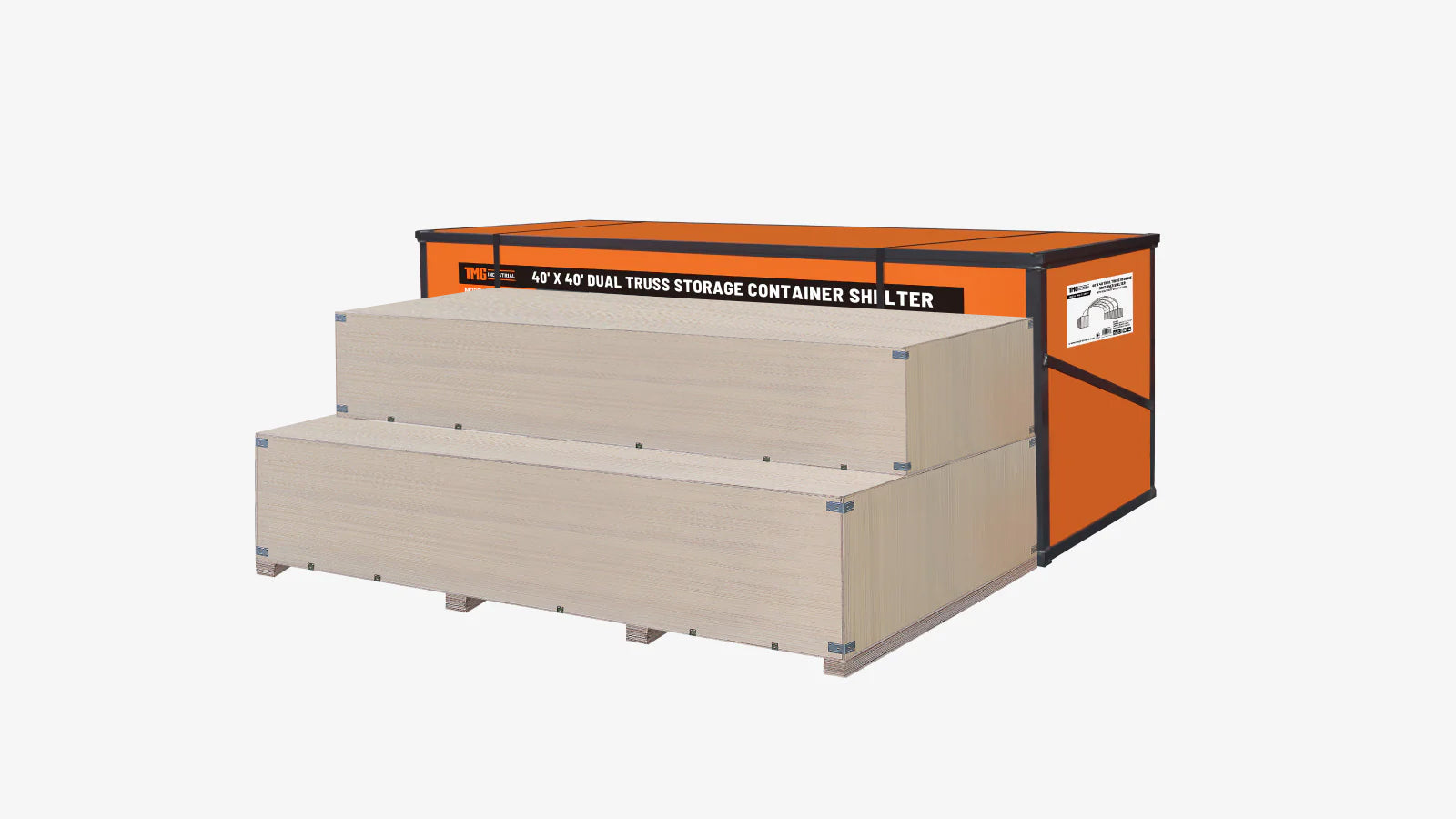

• This product is packed in 3 shipping boxes
• Box A (TMG-DT4041C): 122” x 45” x 45” (L x W x H), 2580 lb
• Box B (TMG-DT40FW9V): 122” x 45” x 16” (L x W x H), 930 lb
• Box C (TMG-DT40BW9V): 122” x 29” x 15” (L x W x H), 555 lb
• Shipping weight: 4065 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
