• 14 HP Kubota 3-cycle water-cooled diesel engine, ensures a potent combination of reliable performance and fuel efficiency
• KDK hydraulic main pump and Eaton motor work together to ensure smooth and precise operation, minimizing downtime and maximizing productivity
• The operator area is thoughtfully designed for comfort and ease of operation, providing a spacious layout that reduces fatigue during long working hours
• Standard auxiliary hydraulics open up a world of possibilities, empowering users to easily attach a variety of tools and attachments for different uses
• Maximum travel speed of 1.5 km/h, maximum digging depth of 62”, and a maximum unloading height of 78” to accommodate a wide variety of tasks

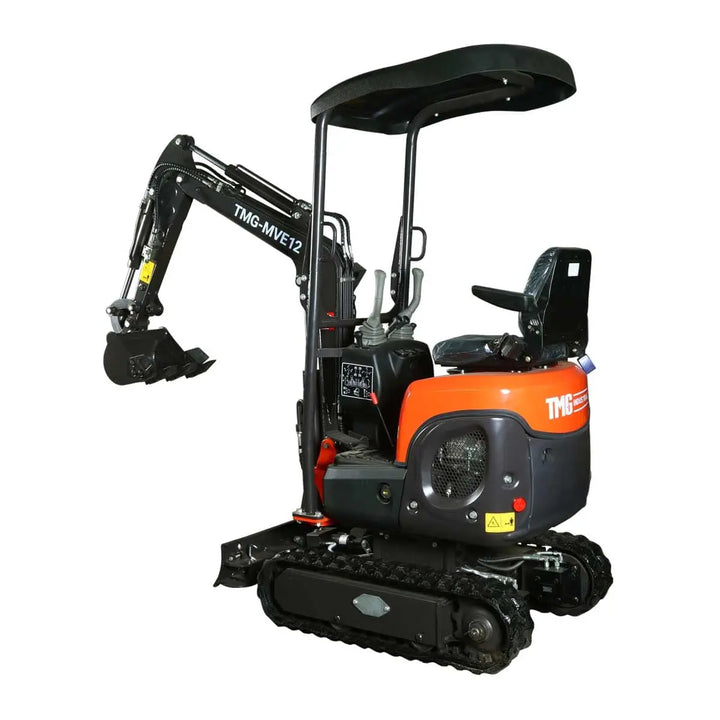

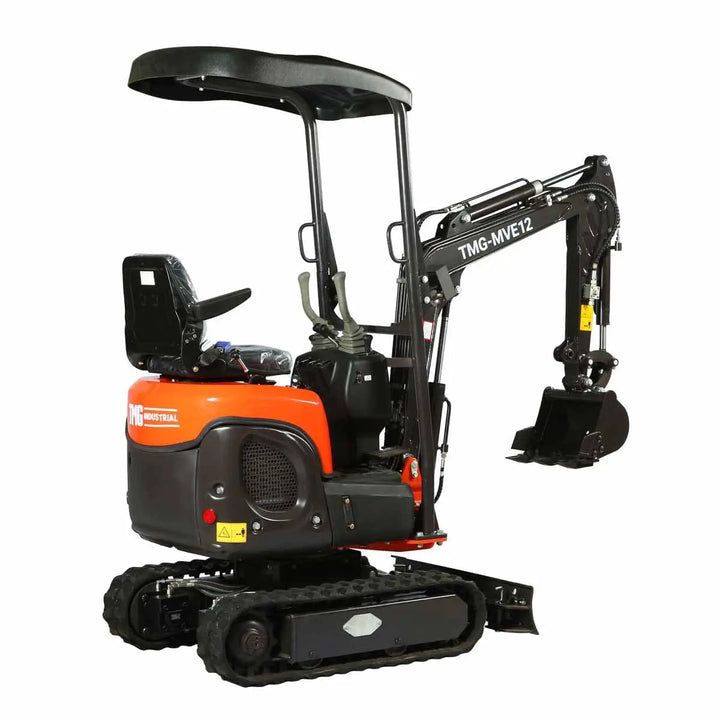

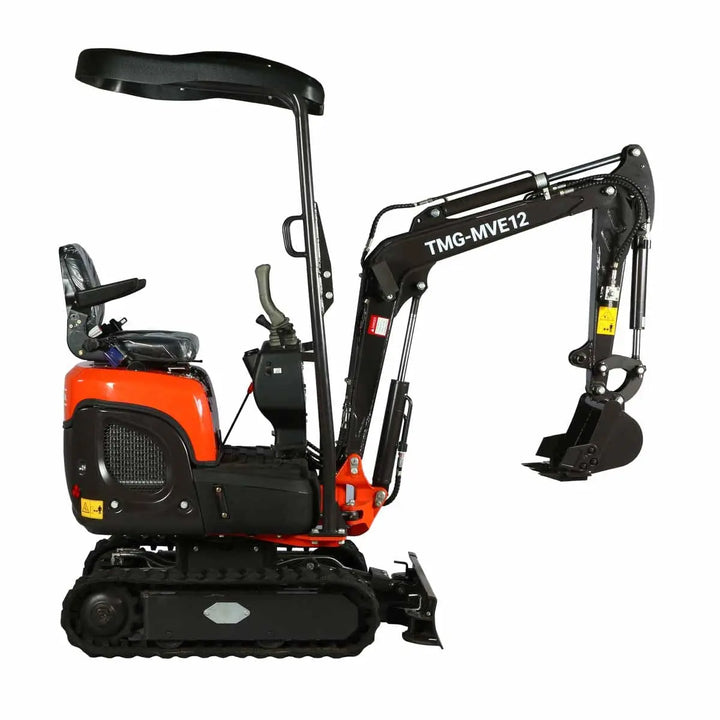

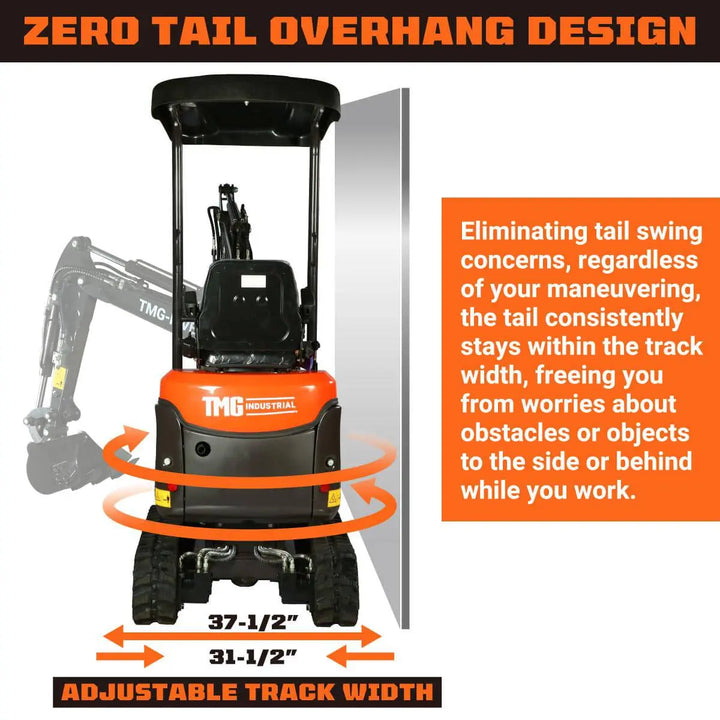

• Zero tail overhang: Eliminating tail swing concerns, regardless of your maneuvering, the tail consistently stays within the track width, freeing you from worries about obstacles or objects to the side or behind while you work.

• Operating weight: 2260 lb

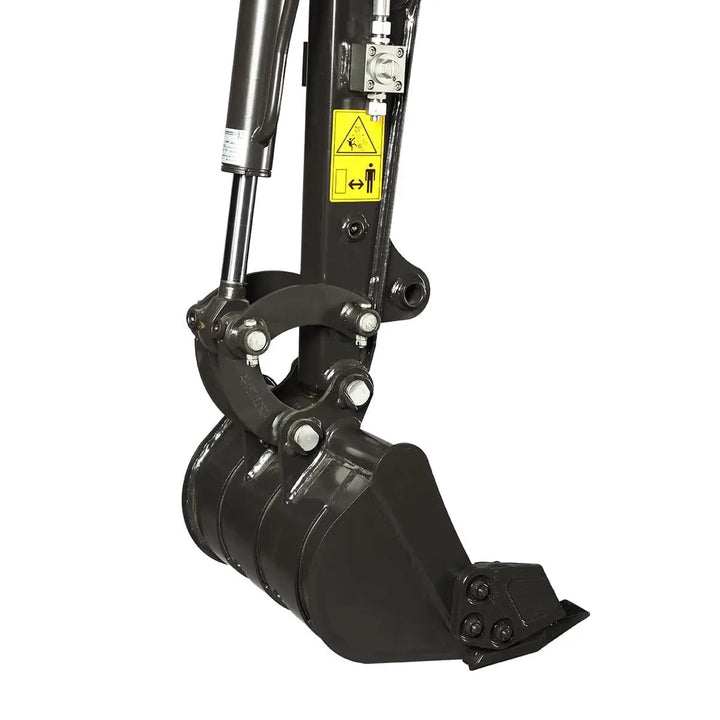

• Standard bucket capacity: 0.7 cu-ft
• Working device form: Backhoe
• Max. travel speed: 1.5 km/h
• Swing speed: 11 RPM
• Max. gradeability: 30°
• Track ground pressure: 32.8 kpa

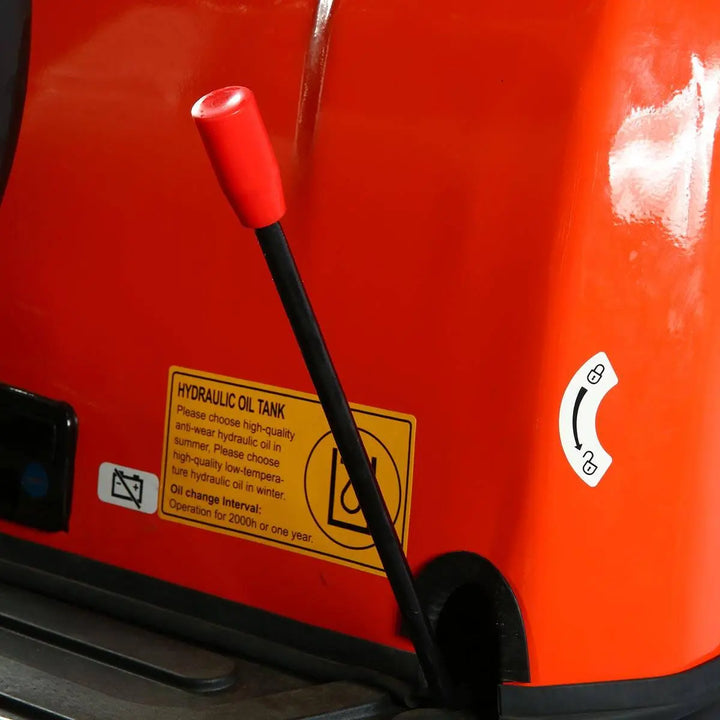

• Hydraulic oil tank capacity: 16 L
• Fuel tank capacity: 11 L
• Max. tractive force: 13.5 kN

Operating Range

• Max. digging depth: 62”
• Overall operating height (fully raised): 103”
• Max. digging radius: 123”
• Max. unloading height: 78”
• Max. vertical digging depth: 62”
• Min. turning radius: 59”
• Max. lifting height dozer blade: 5-½”
• Max. depth dozer blade: 8”
• Boom swing-left: 50°
• Boom swing-right: 55°
• Dipper boom digging force 6.1 kN
• Bucket digging force 8.5 kN

Main Dimensions

• Track length: 49”
• Upper chassis ground clearance: 18”
• Counterweight turning radius: 26”
• Chassis width: 31-½”/37-½”
• Track width: 7”
• Track height: 13”
• Transportation length: 85”
• Height of seat to ground: 60”
• Overall height: 87”

Engine

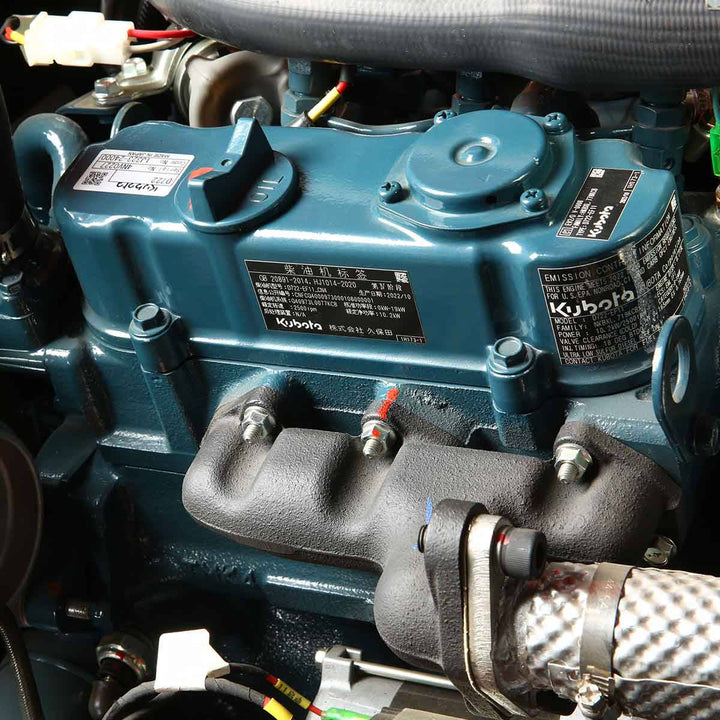

• Powerful 14 HP Kubota vertical 3-cycle water-cooled diesel engine
• Displacement: 0.719 L
• Start type: Electric start w/battery included (12V/20A)
• Rated power: 14 HP/2500 RPM
• Max. torque: 42.9N.m
• Engine oil capacity: 15.3 L

The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• Shipping dimension: 85” x 37” x 86” (L x W x H)
• Shipping weight: 2275 lb
