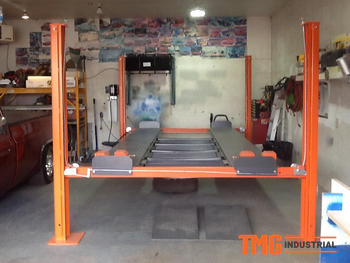

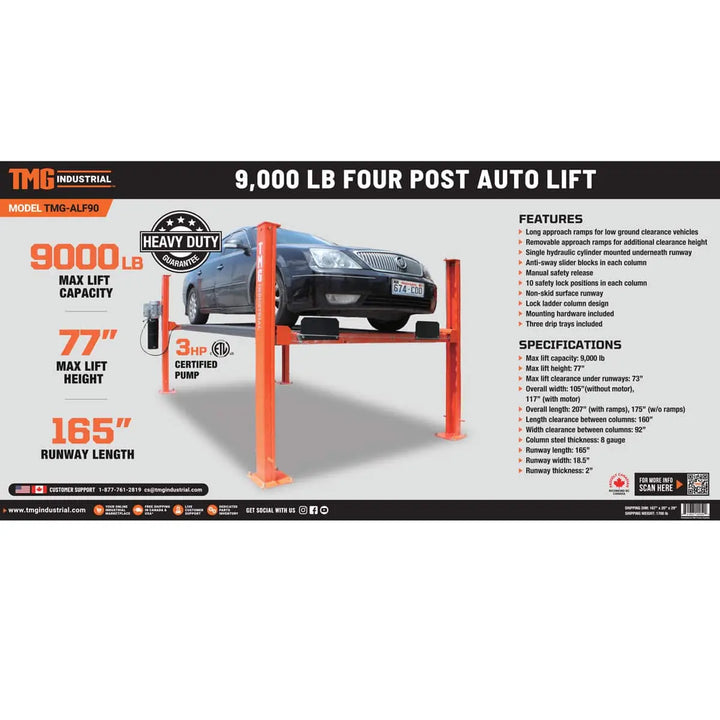

• Great for classic car repairs, fluid checks/changes, commercial garages, home projects and increased vehicle storage space

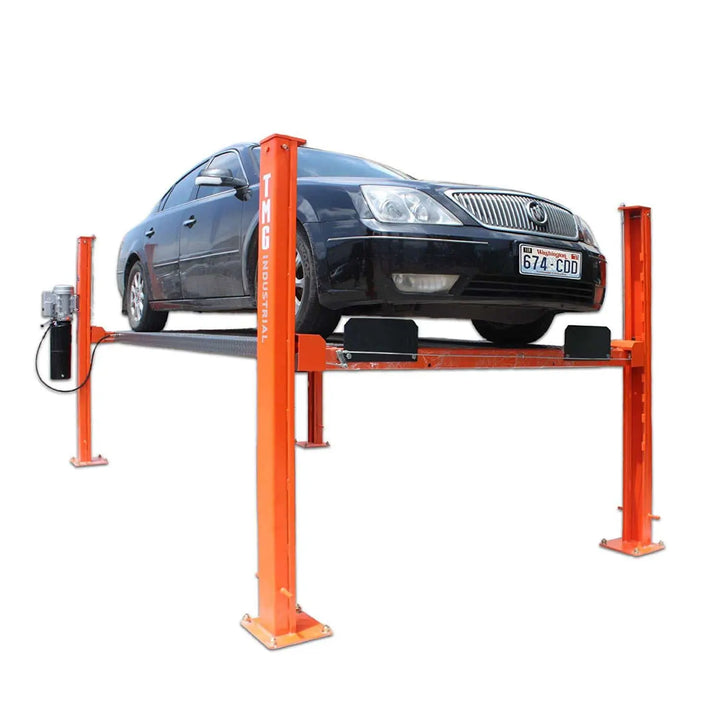

• 9000 lb lift capacity and 77” lift height easily handles most cars, trucks and SUVs for dynamic storage and work possibilities
• Single hydraulic cylinder mounted underneath runway and powered by a 220 VAC, 3 HP, ETL Certified motor for smooth, steady lifting operation
• Lock ladder column design allows you to easily adjust the height of each column; widely considered the safest column design on the market
• Non-skid surface runway and anti-sway slider blocks in each column keep your vehicle in place during loading/unloading, work and storage
• Durable, industrial strength construction and manual safety release keeps you in control of any lowering action and reduces the risk of accidents

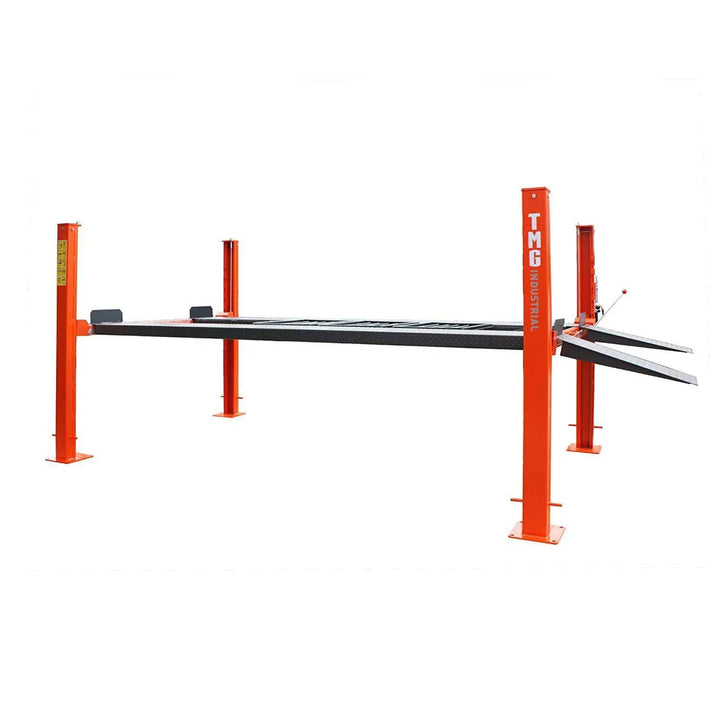

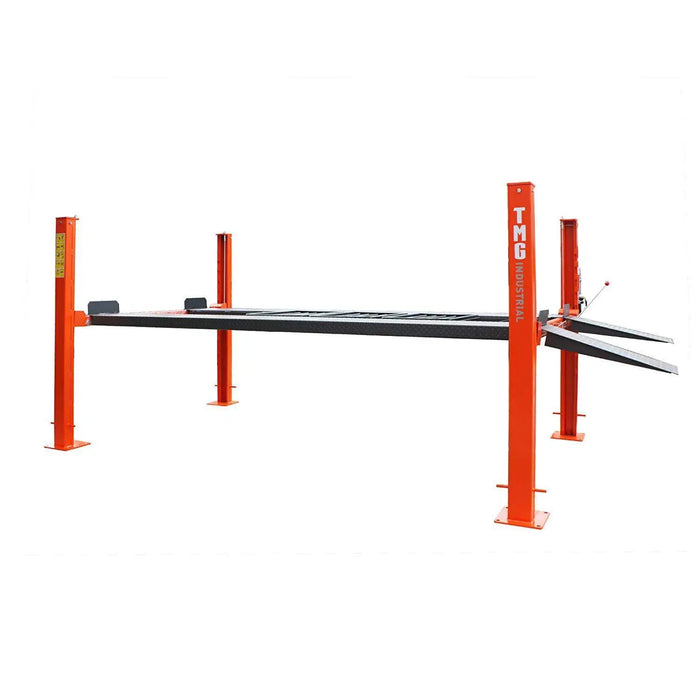

• Long approach ramps for low ground clearance vehicles that can be removed to further increase storage height underneath
• Mobile caster system available (sold separately in TMG parts store)

• Max. lift capacity: 9,000 lb
• Max lift height: 77"
• Max lift clearance under runways: 73”
• Overall length: 207" (with ramps), 175’’ (w/o ramps)
• Outside column width: 105"(without motor), 117" (with motor)
• Length clearance between columns: 160’’
• Width clearance between columns: 92"
• Column height: 84"
• Column frame size: 6” x 2.75”
• Column base: 12” x 12”
• Column steel thickness: 8 gauge
• Runway length: 165”
• Runway width: 18.5”
• Runway thickness: 2’’
• Runway height on the ground: 4.5"
• Width between runways(outside): 75"
• Width between runways(inside): 37.5"
• Runway thickness: ½’’
• Steel cable diameter: 3/8“

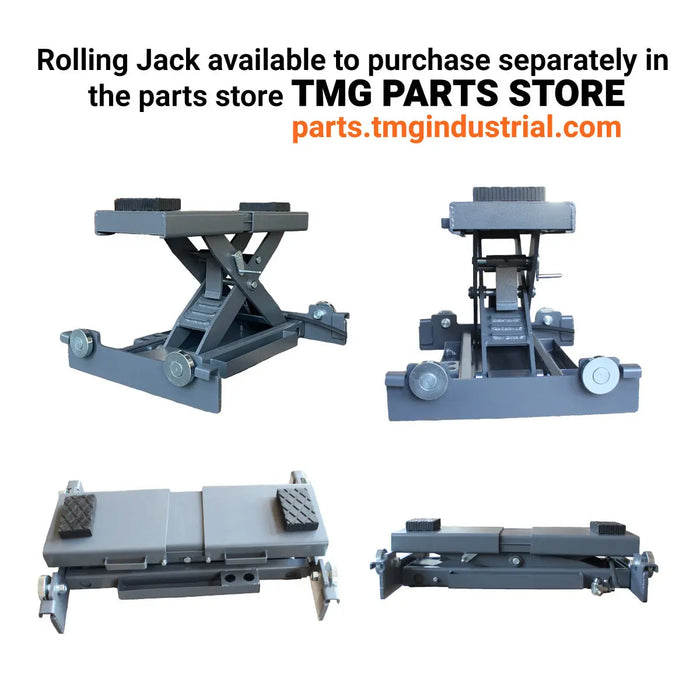

Optional parts: rolling jack
• Width range: 690-1175mm, Max height: 455mm, including connector

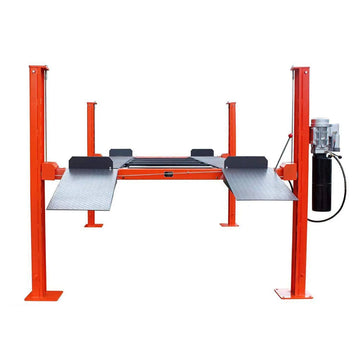

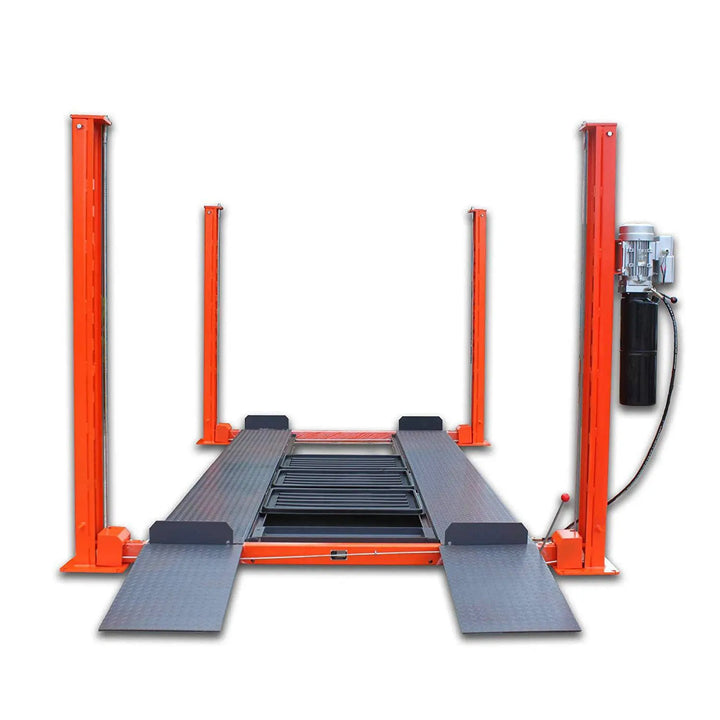

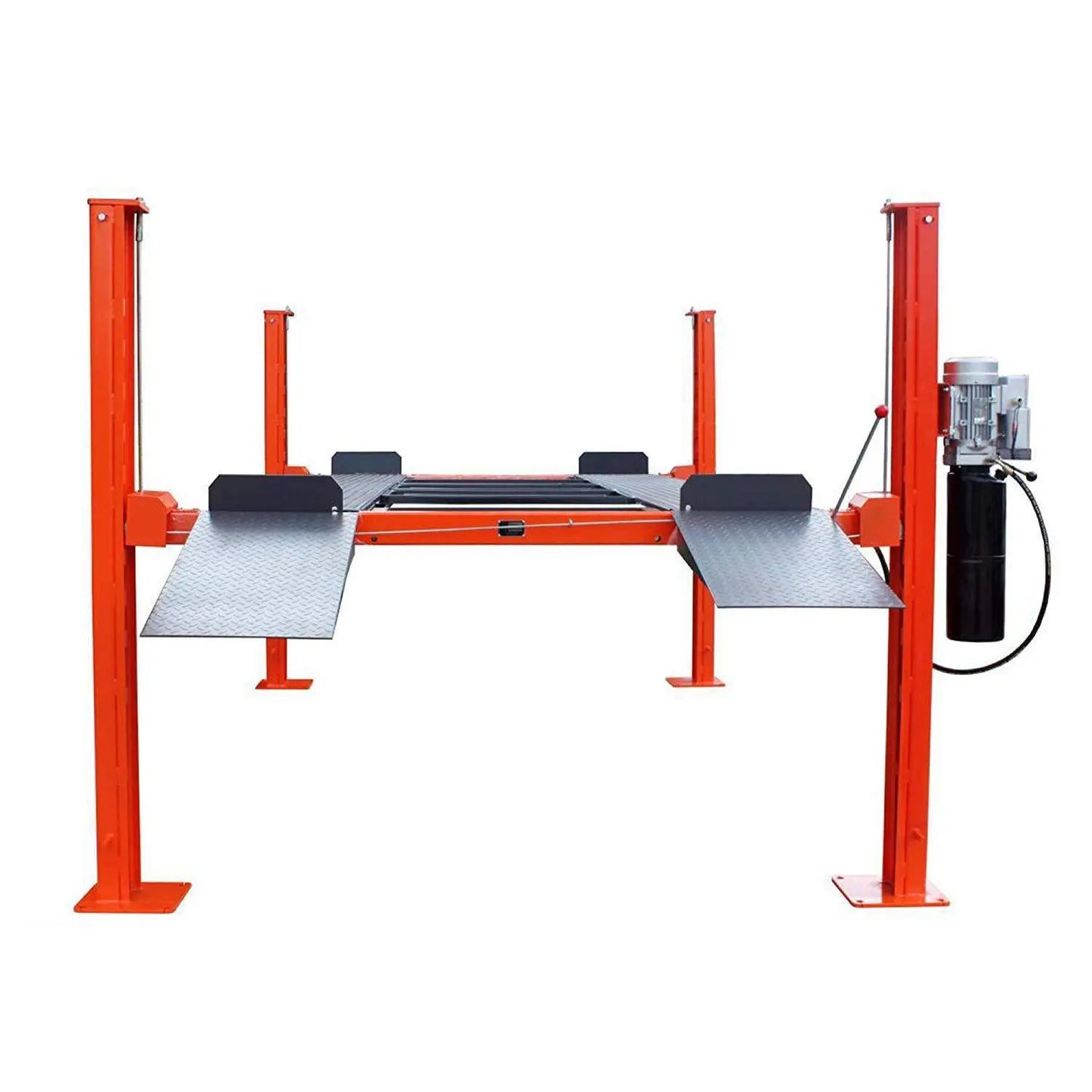

Hydraulic Pump Power Unit:

• 220VAC, 3HP, single phase
• No-load speed: 3360 RPM
• Working pressure: 2600 PSI
• Tank capacity: 2.5 US gallons
• Pump oil required: AW32/AW46
• ETL certified for Canada and the USA

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• This product is packed in a metal crate shipping box
• Shipping dimension: 167” x 20” x 29” (L x W x H)
• Shipping weight: 1700 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
