10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10

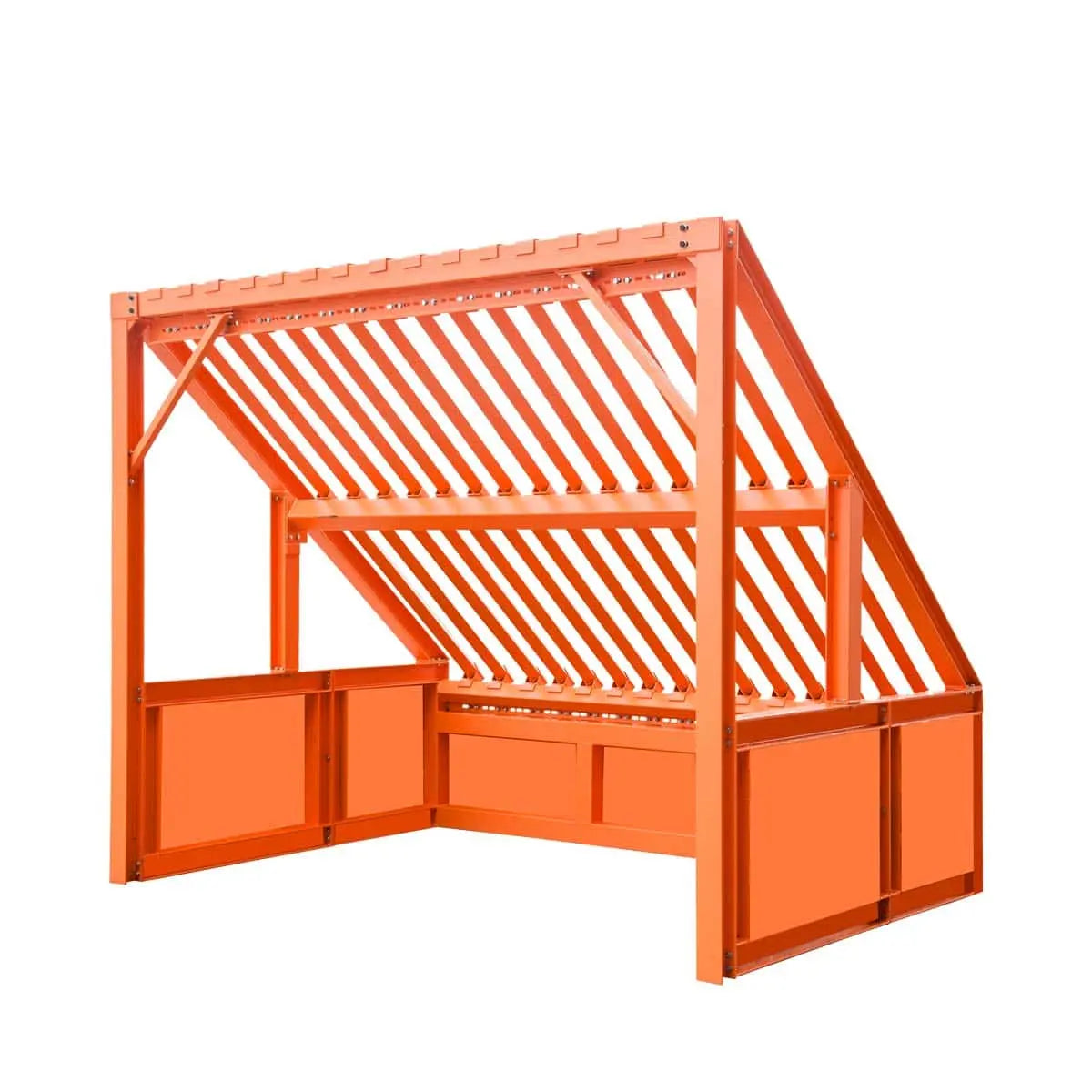

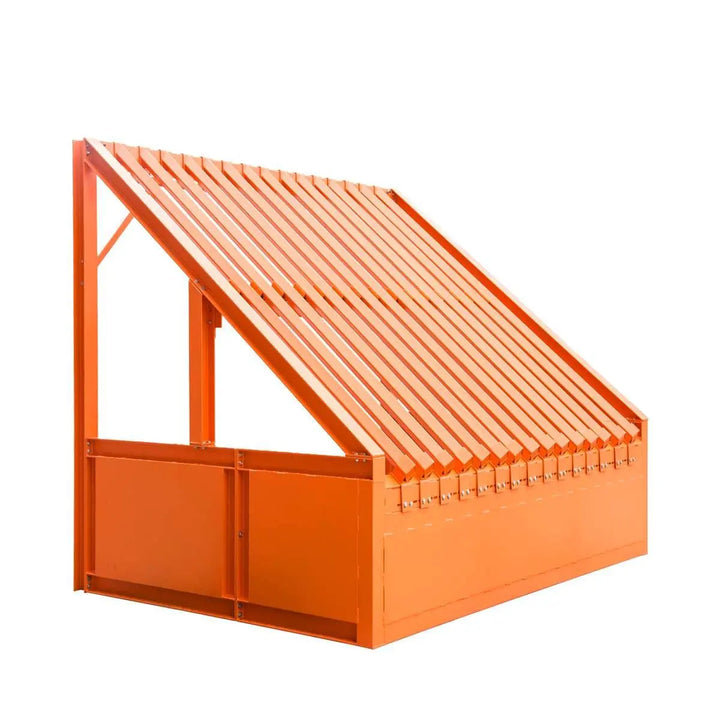

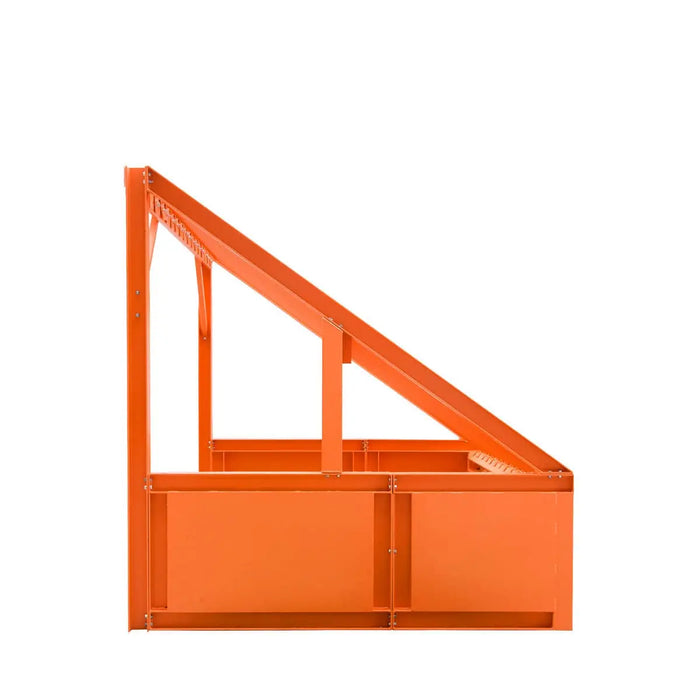

TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
TMG Industrial 10’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS10
SKU TMG-RS10

10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10

$7,499.00 CAD
$7,499.00 CAD - $7,499.00 CAD
$7,499.00 CAD
$6,799.00 CAD
$6,799.00 CAD - $6,799.00 CAD
$6,799.00 CAD
Save $700.00 CAD Save $700.00 CAD CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial options:

Starting at $220/mo with . Learn more
1-877-761-2819
2345.0 lb
120 x 30 x 34 inches
More Shipping Info
  • Used in industries like open-pit mining, demolition, landscaping topsoil & more
  • Adjustable bolt-on deck bars can be added for spacing down to 1” apart (3" standard)
  • 37° slope allows rocks and debris to fall away from the work area
  • 4” x 4” I-beams & square tubing main frame
  • 10’ x 7’ sift accepting area isolates the final product from the waste
More Information
Product Manual
Find Parts
Features Specs Shipping Info Description Warranty Reviews

Features

  • Ideal for a variety of industries and applications including open-pit mining, recycling, crushing, demolition and landscaping
  • 4” x 4” heavy gauge I-beam structural design with a 5000 lb working capacity will handle any and all extreme working conditions

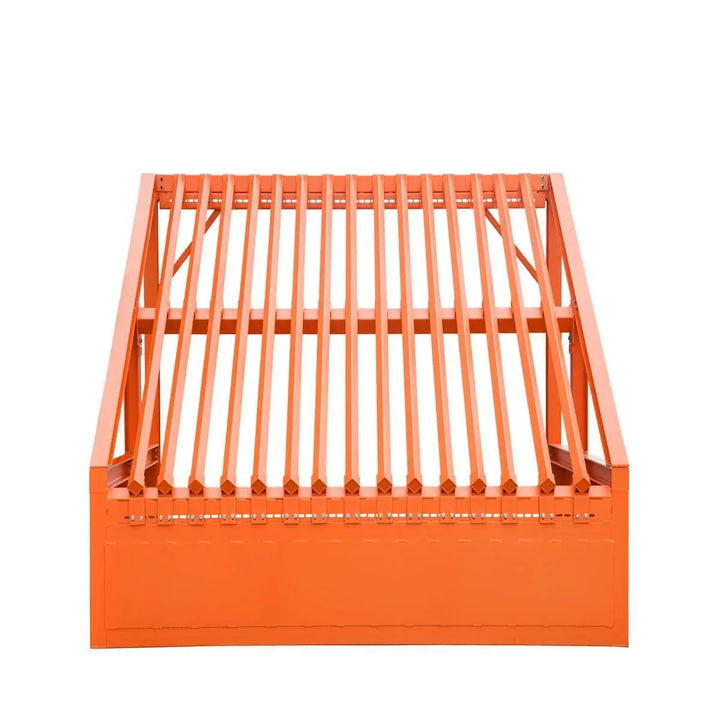

  • Self-cleaning deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
  • Square tubing main frame is quick to assemble and can serve as a staple in your job site or work yard to be used whenever necessary
  • Large 10’ x 7’ sift accepting area underneath isolates the clean product from your waste and keeps a tidy inventory of your materials

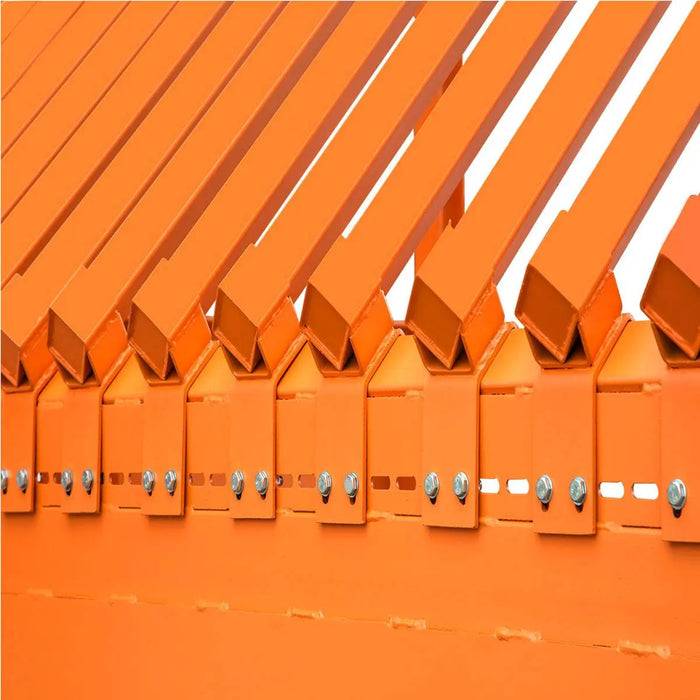

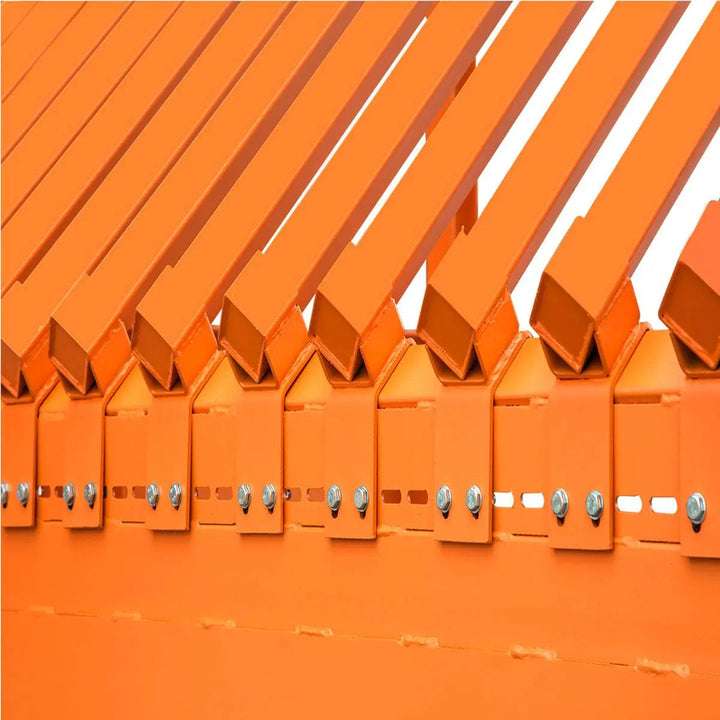

  • Bolt-on adjustable deck bars have versatile minimum to maximum 1” (extra deck bars required) to 5” bar spacing options to fit your every need
  • Industrial strength construction with a powdered coated finish that makes this screener resistant to rust, wear and corrosion

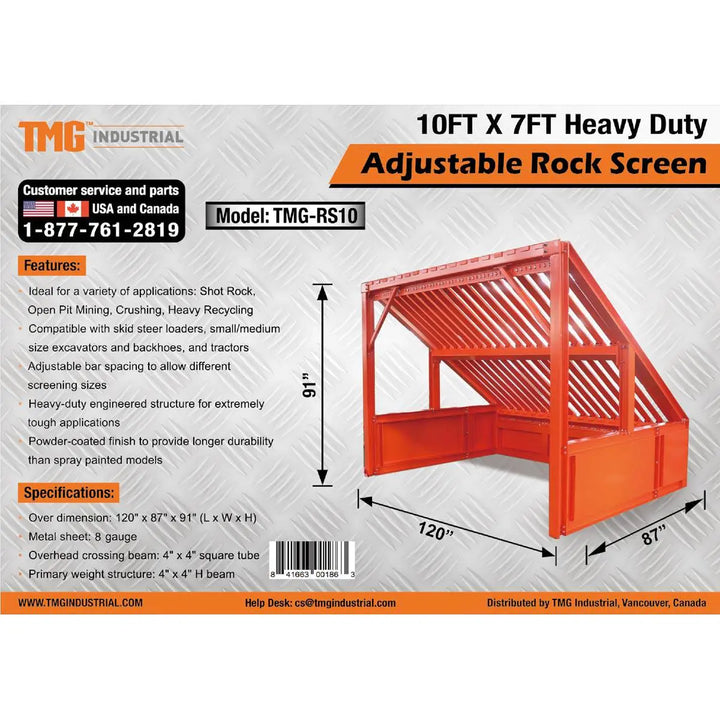

10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10-description-image

Specifications

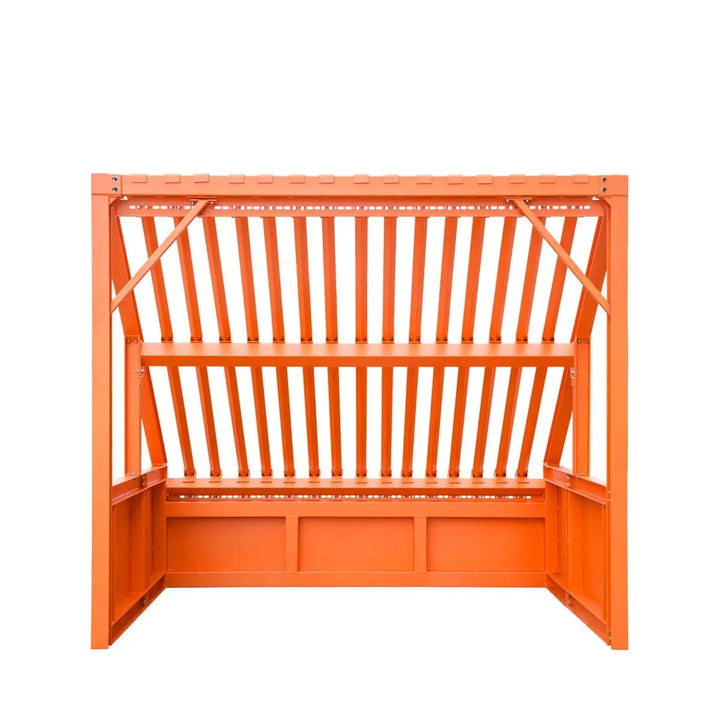

  • Structure size: 10’ (L) x 7-¼’ (W) x 7-½’ (H)
  • Average load capacity: 5000 lb

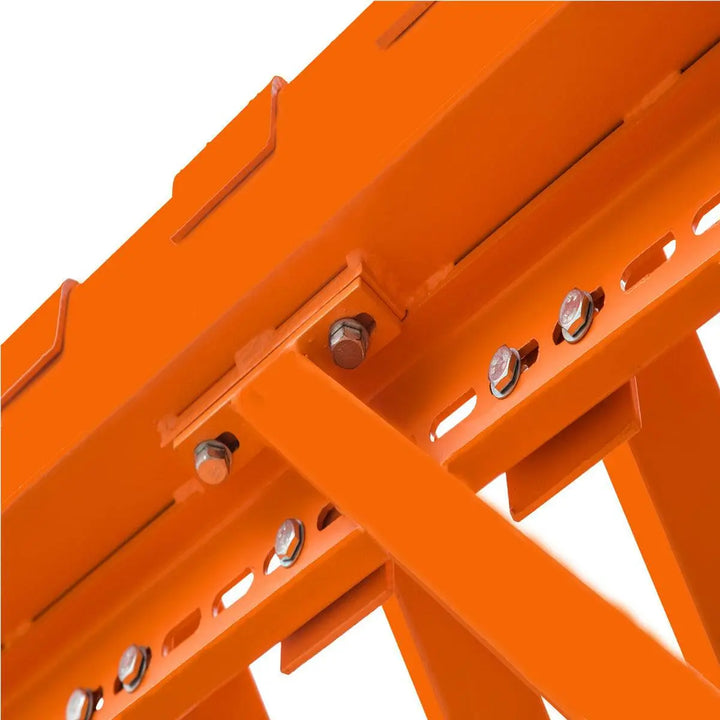

  • Primary frame:
    • 4” x 4” I-beam posts
    • 4” x 4” crossing square tubing
  • Sidewall and front wall steel plate: 10 GA
  • Deck bar: 1-¾” x 1-¾” square tubing, 9’ in length, 8 GA
  • Standard bar spacing: 3”
  • Standard bar quantity: 18 (3” spacing)
  • Minimum bar spacing: 1” (extra deck bars required)
  • Maximum bar quantity: 26 (1” spacing)
  • Maximum bar spacing capacity: 5”
  • First and the last deck bar opening: 2-¾”

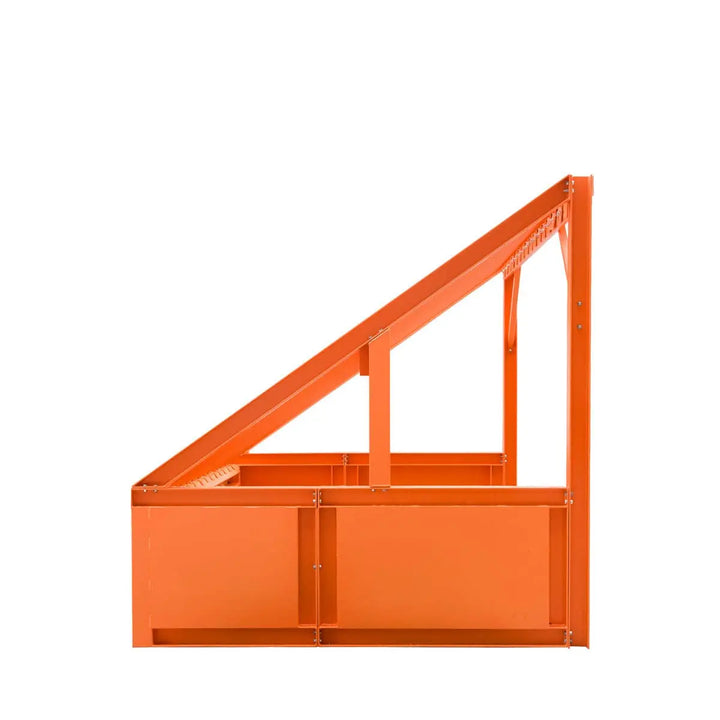

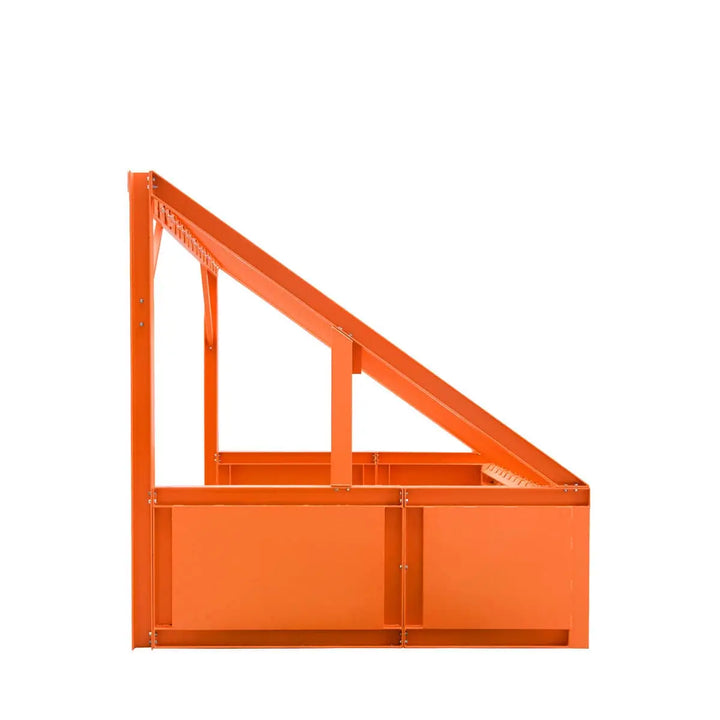

  • Slope angle: 37°
  • Spare deck bars sold separately
  • Assembly required
10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal shipping crate
  • Shipping dimension: 120” x 30” x 34” (L x W x H)
  • Shipping weight: 2345 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
10' Heavy Duty Grizzly Rock Screen with Adjustable Deck Bars, 5000-lb Capacity TMG-RS10-shipping-info-image

Product Description

The TMG-RS10 Heavy-Duty Grizzly Static Rock Screen is designed for efficient material sorting in industries like mining, construction, aggregates, recycling, and landscaping. Featuring a robust 4"x4" I-beam frame and a powder-coated steel structure, this screen is built to last. The 10' x 7' loading area and 5000 lb load capacity are ideal for handling large, mixed loads. Adjustable bolt-on deck bars with 1” to 5” spacing provide versatility for different materials.

The diamond-shaped, self-cleaning deck bars reduce maintenance and ensure smooth material flow. The 37° slope allows debris to slide off efficiently, keeping your site clean. Quick to assemble and designed for heavy-duty use, the TMG-RS10 is perfect for pre-sorting oversized materials before crushing or further processing, saving time and improving productivity.

We also carry a larger model of this screen: TMG-RS12

Warranty

Customer Reviews
5.0 Based on 12 Reviews
5 ★
100%
12
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
02/23/2025

Strong

Very sturdy!

RC
Ryder C.
Was this helpful?  0    0
01/13/2025

Saves labor on every job

No more hand-sifting dirt piles. I run everything through the...read moreNo more hand-sifting dirt piles. I run everything through the grizzly and haul off only clean rock or screened fill.

BK
Briar K.
Was this helpful?  0    0
10/02/2024

Works great with my skid steer

I've been using it with my compact track loader and...read moreI've been using it with my compact track loader and it�s the perfect height and width. Easy to dump into and pull away clean.

MH
Maeve H.
Was this helpful?  0    0
09/26/2024

Heavy duty grizzly rock screen

We purchased the TMG Heavy Duty Grizzly Rock Screen to...read moreWe purchased the TMG Heavy Duty Grizzly Rock Screen to use on a 5 acre grading and prep job where we were dealing with a mix of soil, rock, and old demo debris. The adjustable bolt-on deck bars were easy to configure... we set ours to 2 spacing to remove larger chunks. The 37 slope works great for allowing clean topsoil to fall through while pushing larger pieces down and away. This screen paired perfectly with our 75HP skid steer and held up to full bucket loads. Absolutely recommend for any contractor needing on-site screening!

LB
Logan B.
Was this helpful?  0    0
07/04/2024

Adjustments were easy

Set mine up with 1.5 spacing using the bolt on...read moreSet mine up with 1.5 spacing using the bolt on bars. Took maybe 30 mins. Works great for finer screening.

CD
Cohen D.
Was this helpful?  0    0
06/19/2024

Reliable screen

I use the TMG 10 Heavy Duty Grizzly Rock Screen...read moreI use the TMG 10 Heavy Duty Grizzly Rock Screen on most of my small residential jobs for driveway grading and septic tank prep. It helps me quickly separate usable gravel and soil from oversize rocks, roots, and scrap concrete. The deck bar spacing system is great! I started with 3 and added a few bars to tighten things up. The frame is heavy and sits stable on uneven ground. It's easy to move around with forks, and I've even set it up in the back of my dump trailer when working remote.

MR
Mia R.
Was this helpful?  0    0
05/17/2024

Grizzly Rock Screen

Quality product, works well, well constructed.

NS
Nicole S.
Canada
Was this helpful?  1    2
04/28/2024

No issues so far

Been running it about a month on a grading site....read moreBeen running it about a month on a grading site. Works well, no wear showing yet...

EL
Everett L.
Was this helpful?  0    0
